分库分表之shardingsphere-proxy demo

作者

当前示例场景：某订单系统基于用户纬度分库，并对订单表和订单字表同时进行分表。此处仅为测试demo，相关配置不可用于生产，数据表也粗糙，仅供测试。

Step 1 ：安装启动mysql

mac系统Intel芯片，此处使用Docker方式启动mysql。

拉取mysql镜像

docker pull mysql:5.7

创建本地存储卷

docker volume create mysql-docker-volume

查看创建结果

docker volume ls

将mysql数据库数据关联到本地卷

docker run -d --name mysql-test -p 3306:3306 -v mysql-docker-volume:/var/lib/mysql -e MYSQL_ROOT_PASSWORD=1qaz2wsx mysql:latest

Step 2 ：初始化mysql数据库

  • 创建两个数据库 demo_ds_0和demo_ds_1
  • 分别在两个数据库初始化表
CREATE DATABASE demo_ds_0 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;

USE demo_ds_0;

-- demo_ds_0.t_account definition

CREATE TABLE t_account (
  account_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  user_code varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  name varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  phone varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL,
  pwd varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (account_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_0.t_area definition

CREATE TABLE t_area (
  id bigint NOT NULL,
  code varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  name varchar(200) COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_0.t_order_0 definition
CREATE TABLE t_order_0 (
  order_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  description varchar(300) COLLATE utf8mb4_general_ci DEFAULT NULL,
  create_at datetime NOT NULL,
  PRIMARY KEY (order_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_0.t_order_1 definition
CREATE TABLE t_order_1 (
  order_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  description varchar(300) COLLATE utf8mb4_general_ci DEFAULT NULL,
  create_at datetime NOT NULL,
  PRIMARY KEY (order_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_0.t_order_item_0 definition

CREATE TABLE t_order_item_0 (
  order_item_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  order_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  product_code varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  number int NOT NULL,
  PRIMARY KEY (order_item_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_0.t_order_item_1 definition

CREATE TABLE t_order_item_1 (
  order_item_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  order_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  product_code varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  number int NOT NULL,
  PRIMARY KEY (order_item_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

CREATE DATABASE demo_ds_1 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;
USE demo_ds_1;

-- demo_ds_1.t_account definition
CREATE TABLE t_account (
  account_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  user_code varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  name varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  phone varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL,
  pwd varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (account_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_1.t_area definition

CREATE TABLE t_area (
  id bigint NOT NULL,
  code varchar(8) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  name varchar(200) COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_1.t_order_0 definition
CREATE TABLE t_order_0 (
  order_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  description varchar(300) COLLATE utf8mb4_general_ci DEFAULT NULL,
  create_at datetime NOT NULL,
  PRIMARY KEY (order_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_1.t_order_1 definition
CREATE TABLE t_order_1 (
  order_id varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  description varchar(300) COLLATE utf8mb4_general_ci DEFAULT NULL,
  create_at datetime NOT NULL,
  PRIMARY KEY (order_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_1.t_order_item_0 definition

CREATE TABLE t_order_item_0 (
  order_item_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  order_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  product_code varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  number int COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (order_item_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

-- demo_ds_1.t_order_item_1 definition

CREATE TABLE t_order_item_1 (
  order_item_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  account_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  order_id varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  product_code varchar(100) COLLATE utf8mb4_general_ci NOT NULL,
  number int COLLATE utf8mb4_general_ci NOT NULL,
  PRIMARY KEY (order_item_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

Step 3 : 启动Shardingsphere-Proxy

这里可以使用本地启动或者Docker方式，如果只是演示，本地方式更简单一点。当前shardingsphere-proxy最新脚本为5.4.1，二进制方式需要本地有java 8 以上环境。

二进制启动

  1. 下载二进制包并解压缩 https://dlcdn.apache.org/shardingsphere/5.4.1/apache-shardingsphere-5.4.1-shardingsphere-proxy-bin.tar.gz

    tar -zxvf apache-shardingsphere-5.4.1-shardingsphere-proxy-bin.tar.gz

    目录说明：

    • conf ｜配置文件包，shardingsphere相关的配置均在这里，如服务器链接配置，分片配置，加密配置等
    • bin | 服务启停脚本

  2. 修改配置文件(这仅仅是一个测试demo配置，生产环境需要更严谨，比如安全连接以及分片策略是否使用一致性hash确保未来扩展等。

    👉 详细配置说明官方参考文档

    • 数据库服务器连接配置 server.yaml

      ```yaml
      mode:
      type: Standalone
      repository:

      type: JDBC

      authority:
      users:

      • user: root@%
        password: root
      • user: sharding
        password: sharding
        privilege:
        type: ALL_PERMITTED
 props:
   sql-show: true
   proxy-hint-enabled: true
 ```

  • 分片配置 config-sharding.yaml

    databaseName: sharding_db_demo
dataSources:
  ds_0:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_0?serverTimezone=UTC&useSSL=false&useUnicode=true&characterEncoding=UTF-8
    username: root
    password: 1qaz2wsx
  ds_1:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_1?serverTimezone=UTC&useSSL=false&useUnicode=true&characterEncoding=UTF-8
    username: root
    password: 1qaz2wsx

rules:
- !SHARDING
  tables:
    t_order:
      actualDataNodes: ds_${0..1}.t_order_${0..1}
      tableStrategy:
        standard:
          shardingColumn: order_id
          shardingAlgorithmName: t_order_inline
      keyGenerateStrategy:
        column: order_id
        keyGeneratorName: snowflake
      auditStrategy:
        auditorNames:
          - sharding_key_required_auditor
        allowHintDisable: true
    t_order_item:
      actualDataNodes: ds_${0..1}.t_order_item_${0..1}
      tableStrategy:
        standard:
          shardingColumn: order_id
          shardingAlgorithmName: t_order_item_inline
      keyGenerateStrategy:
        column: order_item_id
        keyGeneratorName: snowflake
    t_account:
      actualDataNodes: ds_${0..1}.t_account
      tableStrategy:
        standard:
          shardingAlgorithmName: t_account_inline
      keyGenerateStrategy:
        column: account_id
        keyGeneratorName: snowflake
  defaultShardingColumn: order_id
  bindingTables:
    - t_account,t_order,t_order_item
  defaultDatabaseStrategy:
    standard:
      shardingColumn: account_id
      shardingAlgorithmName: database_inline
  defaultTableStrategy:
    none:

  shardingAlgorithms:
    database_inline:
      type: INLINE
      props:
        algorithm-expression: ds_${account_id % 2}
        allow-range-query-with-inline-sharding: true
    t_order_inline:
      type: INLINE
      props:
        algorithm-expression: t_order_${order_id % 2}
    t_order_item_inline:
      type: INLINE
      props:
        algorithm-expression: t_order_item_${order_id % 2}
    t_account_inline:
      type: INLINE
      props:
        algorithm-expression: t_account_${account_id % 2}
  keyGenerators:
    snowflake:
      type: SNOWFLAKE
  auditors:
    sharding_key_required_auditor:
      type: DML_SHARDING_CONDITIONS

- !BROADCAST
  tables:
    - t_area

  1. 启动服务

    ./start.sh -p 13306

    启动过程可能出现端口被占用的错误信息，可以根据实际需要进行端口调整。ps：日志默认在压缩包的logs目录下

  2. 连接shardingsphere

    1. 可以使用数据库客户端如mysql workbench / dbeaver / navicat等，不过shardingsphere支持性一般，比如你可以进行正常的查询插入操作，但是对于系统表相关信息查询不能支持。

    2. 通过mysql client进行操作

      mysql -h127.0.0.1 -P13306 -u sharding -p --comments

      --comments参数的添加为了解决Not allow DML operation without sharding conditions报错问题，在查询过程中如果没有分片条件可能不允许查询，通过在连接时增加该参数并在执行sql时添加注释跳过该检查

      / ShardingSphere hint: disableAuditNames=sharding_key_required_auditor/

      或

      / SHARDINGSPHERE_HINT: disableAuditNames=sharding_key_required_auditor /

Docker方式启动参考 官方docker启动文档

Step 4 : 连接shardingsphere-proxy并操作

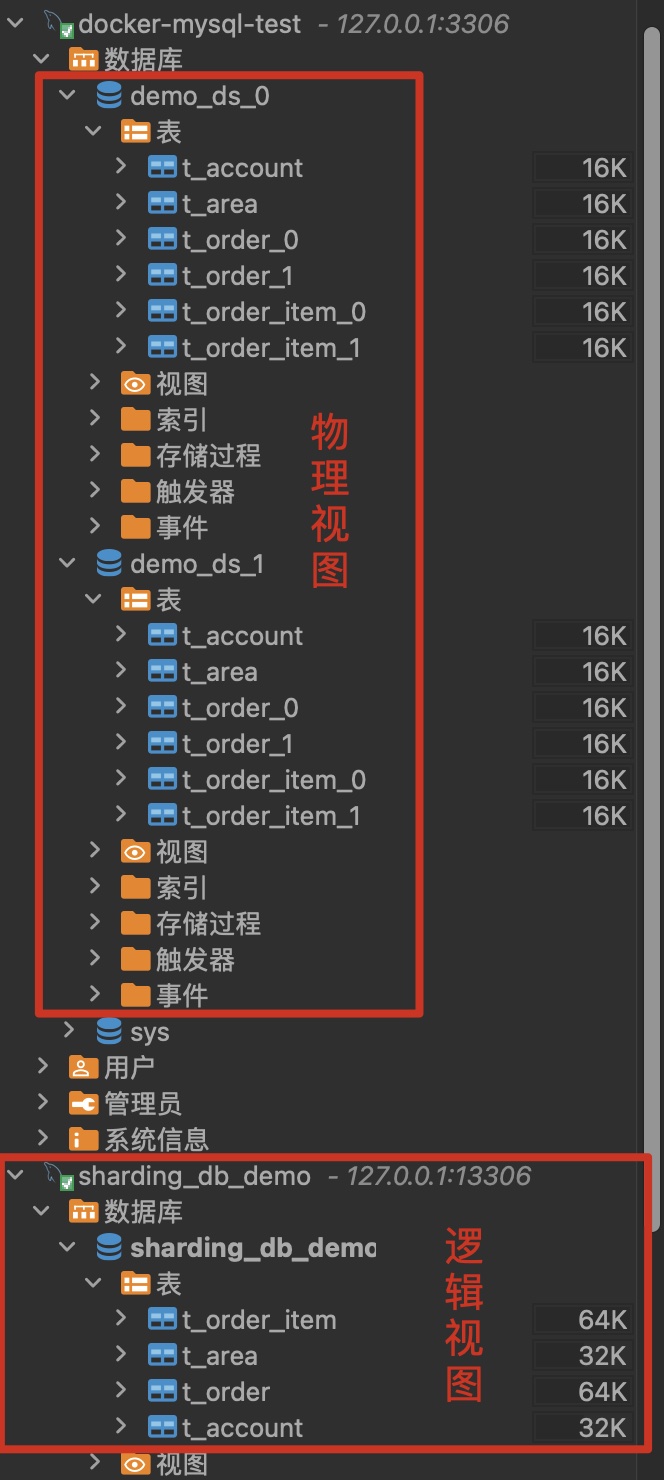

数据库视图

👉 连接

 ~  mysql -h127.0.0.1 -P13306 -u sharding -p --comments
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 4
Server version: 5.7.22-ShardingSphere-Proxy 5.4.1 Source distribution

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> use sharding_db_demo
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed

👉 广播表测试

  • 数据插入
mysql> insert into t_area(code, name) values('200120','上海市浦东新区');
ERROR 1364 (HY000): Field 'id' doesn't have a default value
mysql> insert into t_area(id, code, name) values('1','200120','上海市浦东新区');
Query OK, 1 row affected (0.06 sec)

Shardingsphere 日志(在各个库中插入该数据)：

[INFO ] 2024-01-11 21:43:15.563 [ShardingSphere-Command-4] ShardingSphere-SQL - Logic SQL: insert into t_area(id, code, name) values('1','200120','上海市浦东新区')
[INFO ] 2024-01-11 21:43:15.566 [ShardingSphere-Command-4] ShardingSphere-SQL - Actual SQL: ds_0 ::: insert into t_area(id, code, name) values('1', '200120', '上海市浦东新区')
[INFO ] 2024-01-11 21:43:15.567 [ShardingSphere-Command-4] ShardingSphere-SQL - Actual SQL: ds_1 ::: insert into t_area(id, code, name) values('1', '200120', '上海市浦东新区')
  • 数据查询
mysql> select * from t_area;
+----+--------+-----------------------+
| id | code   | name                  |
+----+--------+-----------------------+
|  1 | 200120 | 上海市浦东新区        |
+----+--------+-----------------------+
1 row in set (0.08 sec)

shardingsphere日志(选择其中一个数据库查询并返回数据) :

[INFO ] 2024-01-11 21:50:06.436 [ShardingSphere-Command-5] ShardingSphere-SQL - Logic SQL: select * from t_area
[INFO ] 2024-01-11 21:50:06.439 [ShardingSphere-Command-5] ShardingSphere-SQL - Actual SQL: ds_1 ::: select * from t_area

👉 用户表(仅分库的表)测试

  • 用户数据插入
mysql> insert into t_account(user_code,name,phone,pwd) values ('leon', '王先森', '131xxxxxxxx', 'pwd');
Query OK, 1 row affected (0.43 sec)

mysql> insert into t_account(user_code,name,phone,pwd) values ('leon2', '王先森', '131xxxxxxxx', 'pwd');
Query OK, 1 row affected (0.08 sec)

shardingsphere日志(根据account_id进行分片)

[INFO ] 2024-01-11 22:00:06.331 [ShardingSphere-Command-7] ShardingSphere-SQL - Logic SQL: insert into t_account(user_code,name,phone,pwd) values ('leon', '王先森', '131xxxxxxxx', 'pwd')
[INFO ] 2024-01-11 22:00:06.333 [ShardingSphere-Command-7] ShardingSphere-SQL - Actual SQL: ds_0 ::: insert into t_account(user_code,name,phone,pwd, account_id) values ('leon', '王先森', '131xxxxxxxx', 'pwd', 952325136957046784)
[INFO ] 2024-01-11 22:01:43.567 [ShardingSphere-Command-8] ShardingSphere-SQL - Logic SQL: insert into t_account(user_code,name,phone,pwd) values ('leon2', '王先森', '131xxxxxxxx', 'pwd')
[INFO ] 2024-01-11 22:01:43.577 [ShardingSphere-Command-8] ShardingSphere-SQL - Actual SQL: ds_1 ::: insert into t_account(user_code,name,phone,pwd, account_id) values ('leon2', '王先森', '131xxxxxxxx', 'pwd', 952325546170122241)
  • 用户数据查询
mysql> select * from t_account where account_id=952325136957046784;
+--------------------+-----------+-----------+-------------+-----+
| account_id         | user_code | name      | phone       | pwd |
+--------------------+-----------+-----------+-------------+-----+
| 952325136957046784 | leon      | 王先森    | 131xxxxxxxx | pwd |
+--------------------+-----------+-----------+-------------+-----+
1 row in set (0.10 sec)

mysql> select * from t_account where account_id >= 952325136957046784;
+--------------------+-----------+-----------+-------------+-----+
| account_id         | user_code | name      | phone       | pwd |
+--------------------+-----------+-----------+-------------+-----+
| 952325136957046784 | leon      | 王先森    | 131xxxxxxxx | pwd |
| 952325546170122241 | leon2     | 王先森    | 131xxxxxxxx | pwd |
+--------------------+-----------+-----------+-------------+-----+
2 rows in set (0.23 sec)

shardingsphere日志(根据account_id所在分片进行查询)

[INFO ] 2024-01-11 22:06:49.590 [ShardingSphere-Command-10] ShardingSphere-SQL - Logic SQL: select * from t_account where account_id=952325136957046784
[INFO ] 2024-01-11 22:06:49.600 [ShardingSphere-Command-10] ShardingSphere-SQL - Actual SQL: ds_0 ::: select * from t_account where account_id=952325136957046784

[INFO ] 2024-01-11 22:09:01.092 [ShardingSphere-Command-11] ShardingSphere-SQL - Logic SQL: select * from t_account where account_id >= 952325136957046784
[INFO ] 2024-01-11 22:09:01.107 [ShardingSphere-Command-11] ShardingSphere-SQL - Actual SQL: ds_0 ::: select * from t_account where account_id >= 952325136957046784
[INFO ] 2024-01-11 22:09:01.108 [ShardingSphere-Command-11] ShardingSphere-SQL - Actual SQL: ds_1 ::: select * from t_account where account_id >= 952325136957046784

🔥 注意：如果查询条件没有分片键值使用字符串会报错

mysql> select * from t_account where account_id='952325136957046784';
ERROR 20082 (44000): Inline sharding algorithms expression ds_${account_id % 2} and sharding column account_id do not match.

👉 订单表(分库且分表)测试

  • 订单数据插入
mysql> insert into t_order(account_id, description, create_at) values (952325136957046784, '描述', now());
Query OK, 1 row affected (0.57 sec)

mysql> insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241', now());
Query OK, 1 row affected (0.03 sec)

mysql> insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241-2', now());
Query OK, 1 row affected (0.02 sec)

mysql> insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241-3', now());
Query OK, 1 row affected (0.07 sec)

shardingsphere日志(根据account_id和order_id所在分片进行分片插入)

[INFO ] 2024-01-11 22:17:19.215 [ShardingSphere-Command-12] ShardingSphere-SQL - Logic SQL: insert into t_order(account_id, description, create_at) values (952325136957046784, '描述', now())
[INFO ] 2024-01-11 22:17:19.226 [ShardingSphere-Command-12] ShardingSphere-SQL - Actual SQL: ds_0 ::: insert into t_order_0(account_id, description, create_at, order_id) values (952325136957046784, '描述', now(), 952329469211705344)
[INFO ] 2024-01-11 22:18:25.028 [ShardingSphere-Command-13] ShardingSphere-SQL - Logic SQL: insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241', now())
[INFO ] 2024-01-11 22:18:25.038 [ShardingSphere-Command-13] ShardingSphere-SQL - Actual SQL: ds_1 ::: insert into t_order_0(account_id, description, create_at, order_id) values (952325546170122241, '描述-952325546170122241', now(), 952329746614583296)
[INFO ] 2024-01-11 22:19:32.380 [ShardingSphere-Command-14] ShardingSphere-SQL - Logic SQL: insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241-2', now())
[INFO ] 2024-01-11 22:19:32.383 [ShardingSphere-Command-14] ShardingSphere-SQL - Actual SQL: ds_1 ::: insert into t_order_0(account_id, description, create_at, order_id) values (952325546170122241, '描述-952325546170122241-2', now(), 952330029121929216)
[INFO ] 2024-01-11 22:19:54.512 [ShardingSphere-Command-14] ShardingSphere-SQL - Logic SQL: insert into t_order(account_id, description, create_at) values (952325546170122241, '描述-952325546170122241-3', now())
[INFO ] 2024-01-11 22:19:54.512 [ShardingSphere-Command-14] ShardingSphere-SQL - Actual SQL: ds_1 ::: insert into t_order_1(account_id, description, create_at, order_id) values (952325546170122241, '描述-952325546170122241-3', now(), 952330121950265345)
  • 订单数据表查询

一个分片键查询

mysql> select * from t_order where account_id=952325546170122241;
+--------------------+--------------------+-----------------------------+---------------------+
| order_id           | account_id         | description                 | create_at           |
+--------------------+--------------------+-----------------------------+---------------------+
| 952329746614583296 | 952325546170122241 | 描述-952325546170122241     | 2024-01-11 22:18:25 |
| 952330029121929216 | 952325546170122241 | 描述-952325546170122241-2   | 2024-01-11 22:19:32 |
| 952330121950265345 | 952325546170122241 | 描述-952325546170122241-3   | 2024-01-11 22:19:54 |
+--------------------+--------------------+-----------------------------+---------------------+
3 rows in set (0.04 sec)

shardingsphere日志

[INFO ] 2024-01-11 22:23:16.422 [ShardingSphere-Command-15] ShardingSphere-SQL - Logic SQL: select * from t_order where account_id=952325546170122241
[INFO ] 2024-01-11 22:23:16.423 [ShardingSphere-Command-15] ShardingSphere-SQL - Actual SQL: ds_1 ::: select * from t_order_0 where account_id=952325546170122241 UNION ALL select * from t_order_1 where account_id=952325546170122241

两个分片键查询

mysql> select * from t_order where account_id=952325546170122241 and order_id=952329746614583296;
+--------------------+--------------------+---------------------------+---------------------+
| order_id           | account_id         | description               | create_at           |
+--------------------+--------------------+---------------------------+---------------------+
| 952329746614583296 | 952325546170122241 | 描述-952325546170122241   | 2024-01-11 22:18:25 |
+--------------------+--------------------+---------------------------+---------------------+
1 row in set (0.02 sec)

shardingsphere日志

[INFO ] 2024-01-11 22:24:46.329 [ShardingSphere-Command-16] ShardingSphere-SQL - Logic SQL: select * from t_order where account_id=952325546170122241 and order_id=952329746614583296
[INFO ] 2024-01-11 22:24:46.331 [ShardingSphere-Command-16] ShardingSphere-SQL - Actual SQL: ds_1 ::: select * from t_order_0 where account_id=952325546170122241 and order_id=952329746614583296

demo总结

  • 数据库与表需要手动创建

  • 支持仅分库/仅分表/分库+分表

  • 参与分库和分表的表需要包含全部分片键。比如该示例中如果t_order_item表中不包含account_id在插入数据时将出现如下错误信息：

    mysql> insert into t_order_item(order_id, product_code, number) values (952329746614583296, 'PCODE-001', 1);
ERROR 20087 (44000): Please check your sharding conditions ShardingConditions(conditions=[ShardingCondition(values=[t_order_item.order_id = 952329746614583296], startIndex=0)], sqlStatementContext=org.apache.shardingsphere.infra.binder.context.statement.dml.InsertStatementContext@55f8f25f, rule=org.apache.shardingsphere.sharding.rule.ShardingRule@342e690b, subqueryContainsShardingCondition=true) to avoid same record in table t_order_item routing to multiple data nodes.

可能碰到的问题
